The patented Rotrex planetary gearbox enables impeller speeds of up to 240,000 rpm; it offers high efficiency, a compact design, durability, and low noise levels. Due to the low weight of the moving components (turbine, gearbox), friction—and consequently heat generation and power loss—is very low.

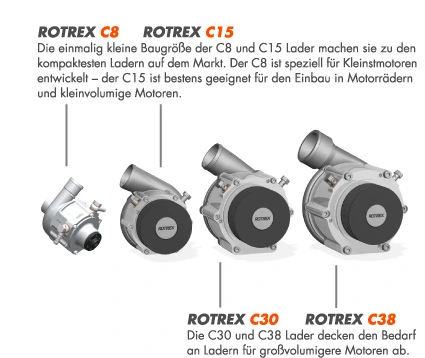

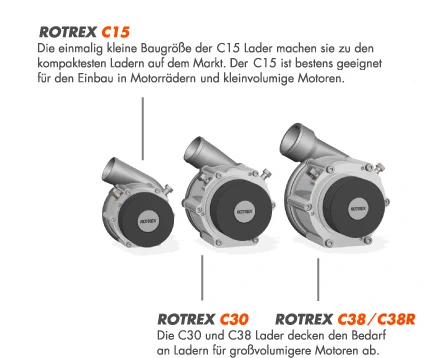

Rotrex’s standard product range consists of four product families: C8, C15, C30, and C38. In addition to our standard product families, we also offer custom designs. Since 2011, we have also offered the C38-91 supercharger, which was developed specifically for high-displacement engines.

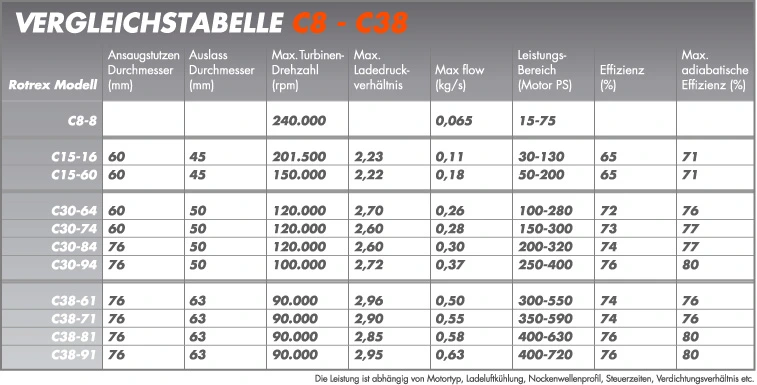

Below you will find detailed information on product families, performance ranges, and technical documentation.
Power range C8: 15–75 hp
Max. turbine speed: 240,000 rpm
Internal gear ratio: 1 : 12.52
Max. turbine speed: 240,000 rpm
Internal gear ratio: 1 : 12.52
Power range C15-16: 30–130 hp
Power range C15-60: 50–200 hp
Max. turbine speed: 205,000 rpm
Internal gear ratio: 1 : 12.67
Power range C15-60: 50–200 hp
Max. turbine speed: 205,000 rpm
Internal gear ratio: 1 : 12.67
Power range C30-64: 100–280 hp
Power range C30-74: 150–300 hp
Power range C30-84: 200–320 hp
Power range C30-74: 150–300 hp
Power range C30-84: 200–320 hp
Power range C38-61: 300–550 hp
Power range C38-71: 350–590 hp
Power range C38-81: 400–630 hp
Power range C38-91: 500–700 hp
Max. turbine speed 90,000 rpm
Internal gear ratio 1 : 7.5
Power range C38-71: 350–590 hp
Power range C38-81: 400–630 hp
Power range C38-91: 500–700 hp
Max. turbine speed 90,000 rpm
Internal gear ratio 1 : 7.5
Product Family C38R
Power range C38R-112: 455–965 hp
Max. turbine speed: 90,000 rpm
Internal gear ratio: 1 : 6.0
Power range C38R-112: 455–965 hp
Max. turbine speed: 90,000 rpm
Internal gear ratio: 1 : 6.0
ROTREX PRODUCT FAMILY C38R
